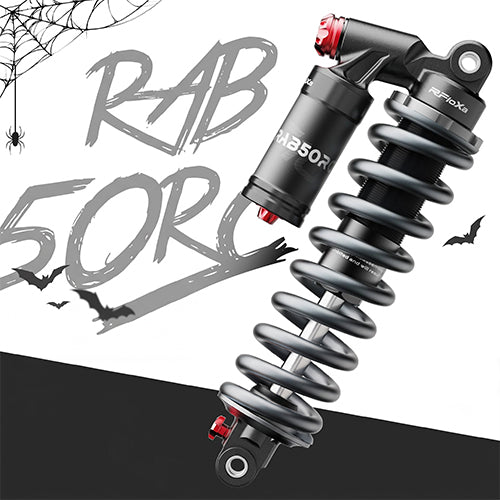

① Advanced Technology - The RAB50RC rear shock absorber features an oil-gas separation damping structure with an external nitrogen reservoir, providing exceptional shock absorption. Enjoy the smoothest rides, even on the roughest terrains.
② Versatile Use - This high-performance rear shock absorber is perfect for tackling various challenging road conditions and is ideal for E-BIKES, bicycles, and off-road electric bikes. Multiple specifications are available, and if your bike’s requirements are not listed, feel free to contact us for customization.
③ Unmatched Durability - Constructed from aerospace-grade AL6061-T6 aluminum alloy, the RAB50RC is designed to resist oxidation and enhance strength. It’s robust enough to handle all the demanding maneuvers you aspire to perform.
④ Comprehensive Adjustability - The rear suspension is equipped with rebound and compression damping adjustment knobs, allowing you to fine-tune your ride based on personal preferences. The spring hardness is adjustable via the toothed disk at the top of the spring—turn it down for a firmer feel or up for a softer response. Inflate the cylinder gas through the bottom valve for additional customization.
⑤ Reliable Warranty - We offer a one-year warranty service. Should any quality issues arise, please contact us for a replacement. We have full confidence in the RAB50RC’s performance, making it a highly cost-effective rear suspension option. Ensure to measure your bike’s rear suspension requirements accurately and select the appropriate size.
Weight:
- 450lbs spring - 80-100kg
- 550lbs spring - 100kg-130kg
- 650lbs spring - 130kg-180kg
Adjustments: Rebound / Compression
Features:
- External Nitrogen Reservoir
- Oil-Gas Separation Damping Structure
- Multi-stage Rebound Damping Adjustment
- Multi-stage Compression Damping Adjustment
- AL6061-T6 Forged Upper Mount
- AL6061-T6 Aluminum Alloy Main Tube
- 42CRMO Main Shaft
- 55CRSI Spring Wire
- C-ring Retainer Spring Base for Stability During Riding
- Easy-to-remove Spring Design
- Fine and Smooth Rebound and Compression Damping Adjustment, with noticeable feedback at each stage
- Rubber Bladder in the Air Chamber for Reduced Heat Fading of Damping and Enhanced Shock Absorption for Small Bumps
FAQ
Q: Is this suspension suitable for my Talaria or Surron, and which size fits best?
A: For Surron and Talaria riders, the optimal fit is 265mm (10.5") with 83mm travel.
FOR RAB LINE
- One Year warranty
- Compression & Rebound Adjustment
- High & Low Speed Adjustment
- One-Step Lock Com Adjuster
Shipping information
Shipping information
FOR order Tracking/DROPSHIP:
SHIPPING AREA
RFloXa All shipping will be a door-to-door service with local UPS,FedEx or DHL delivery company.We offer worldwide free shipping. If you purchase multiple items they will typically be shipped together.The buyer of a shipment pays customs duties, fees or taxes.transit time in days, shipped in Monday-Friday .
According to the ordering address and link, free shipping will be provided from warehouses in the United States and the European Union. If the warehouse is out of stock, it will be shipped from China by default.
PROCESSING TIME
Within 24 hours after the order is placed, the item will be handed to the carrier and the shipping label will be created. Once your package has been picked-up by the carrier you can obtain delivery information directly from them – LOGISTICS INQUIRY LINK: HTTPS://WWW.17TRACK.NET/EN. Orders will not be processed on Weekends or Statutory Holidays.
DELIVERY TIME
Our goal is to ensure that your order is processed quickly and effectively. According to the order, all products are shipped from China, California, and Germany. Depending on the destination and transportation channel, the delivery time is 3-10 working days. Please note that delivery may be delayed due to force majeure.
TRACK YOUR ORDER
An email with tracking details will be sent when your item is dispatched so its journey can be followed.
For any reasons you don't receive this email or for more shipping information, please contact us at sales@rfloxa.com.
NOTE
-Pre order and customized products are not applicable to the above terms. The expected delivery date will be listed in the product title and description, as well as the specific time after communication.
-RfloXa will not be responsible for any damage, loss, or theft of goods caused by third-party carriers after the goods are released from the warehouse.
-RFloXa will not accept product or product part orders being shipped to Puerto Rico or Alaska. Please call 0086-18719363813 Monday – Friday 9 am to 5 pm to place your order by phone. We apologize for the inconvenience.
P.O. boxes
RFloXa can not ship to a U.S. Postal Service post office box. Please provide an actual street address.APO/FPO addresses
FOR DEALERSHIP:
SHIPPING AREA
Spot goods can ship to worldwide EXPECT Puerto Rico or Alaska .
Please contact us on the shipping method, delivery date, and pre-order placing.
SHIPPING METHODS
To avoid logistics damage, it is recommended to use your own cooperated logistics or pick up the goods at our warehouse. If these methods are not available, the goods will be handed to the third-party carrier for transportation. Please note that RFloXa will not be responsible for goods damaged, lost, or stolen due to handling by the third-party carrier after the goods are out of the warehouse.
THIRD-PARTY SHIPPING PROCESSING TIME
Spot goods will be handed to the carrier and the shipping label will be created within 24 hours after the order is placed. Packages are processed by the carrier within 2 business days after being picked up. Once your package has been picked-up by the carrier you can obtain delivery information directly from them – LOGISTICS INQUIRY LINK: HTTPS://WWW.17TRACK.NET/EN. Orders will not be processed on Weekends or Statutory Holidays.
Pre-orders are subject to actual conditions.
THIRD-PARTY SHIPPING ORDER TRACKING
An email with tracking details will be sent when your item is dispatched so its journey can be followed. For any reasons you don't receive this email or for more shipping information, please contact the salesperson who is in touch with you.
Delivery Areas and Shipping Time
|
SHIPPING METHOD |
REGION |
SHIPPING TIME |
|
Standard Free Shipping(UPS,FedEx or DHL) |
United States, Canada, France, Belgium, Germany, Netherlands, Switzerland, Ireland, Iceland Spain, Portugal, Denmark, Finland, Norway, Sweden, Slovenia Poland, Hungary, Austria, Czech Republic, Israel, Japan, South Korea, Vietnam, Singapore, Malaysia, Thailand, Philippines, Indonesia, Australia, New Zealand, Italy |
7 - 14 |
|
|
Brazil, Chile, Russia, South Africa |
14 - 30 |
|
UAE, Kuwait, Saudi Arabia, Lebanon |
10 - 24 |
|
|
All Other Countries |
15 - 30 |
|
|
|
|
Address accuracy
Please double check your address for accuracy when ordering from RFloXa. An incorrectly entered addresses can delay or prevent shipment.
Delivery time
When you place an order with RFloXa we will estimate shipping and delivery dates. Note that these dates are approximate and can change based on circumstances beyond our control. Once your package has been picked-up by the carrier you can obtain delivery information directly from them – LOGISTICS INQUIRY LINK: HTTPS://WWW.17TRACK.NET/EN
After you place an order on RFloXa, Order cutoff time is 12.am, (EST),your order will generally take 48-72 hours to leave our warehouse. Warehouse operational hours are Monday – Friday excluding holidays. Orders placed on Friday, Saturday or Sunday will generally be processed by our warehouse Monday, the first business day of the week.
Shipping costs
All our shipping will be a door-to-door service with local UPS,FedEx or DHL delivery company.
Set up guide
Set up guide
Set Up Guide
VIDEO:installation tutorial
MAINTENANCE GUIDE
Spring Rate Chart
Spring Rate Chart
| Spring Rate |
| Weight in kg XS |
| Weight in lbs XS |
| Spring Rate | 450LBS | 550LBS | 600LBS |
|---|---|---|---|
| Weight in kg | 80-100 | 100-130 | 130-180 |
| Weight in lbs | 176-220 | 220-286 | 286-397 |
* Spring Rate in lbs, Weight in kg/lbs.
Let customers speak for us
So far so good
I went with 550 spring because I plan on doing some serious jumps so we will see!
Vincent Johns
RFLOXA RAB53RV Rear Shock for Surron & Talaria sting light beex + high and low speed spring damping
My 3rd Surron shock, I needed better this time around.
So far so good. I'm 200 lbs so I went with the 550 spring rate option. Fits the Surron perfectly. Initial feel of the shock is very good. My original Fastace shock wore out and broke. I then bought the 2024 KKE shock. Not very good, lacked control. Did not feel very good. The RFloxa feels like a performance shock upgrade. Durability will have to see.
Bryan Thornhill
RFLOXA RAB53RV Rear Shock for Surron & Talaria sting light beex + high and low speed spring damping
Feels great
More responsive
Smoother ride
Feels Great!
Ethan Schatz
RFLOXA RAB53RV Rear Shock for Surron & Talaria sting light beex + high and low speed spring damping
RFLOXA RAB53RV
Top , i wait for Rfloxa fork 228 mm when back in stock
Gérard BARDOU
RFLOXA RAB53RV Rear Shock for Surron & Talaria sting light beex + high and low speed spring damping
Great shock for great price
I got the 550 pound spring and it feels great, very good shock for the money. Definitely a step up from stock.
Adam Couture
RFLOXA RAB53RV Rear Shock for Surron & Talaria sting light beex + high and low speed spring damping
Amazing Fork👍👍👍
I get this fork and try, it is awesome and when I ride I can use the spring preload adjustment, so I can adjust the spring rate!
Will try pro model soon!!!
JOJO YANG
RFLOXA Hawk32 Front Fork for Surron & Talaria sting light bee & Eride pro SS+ Spring Preload
-

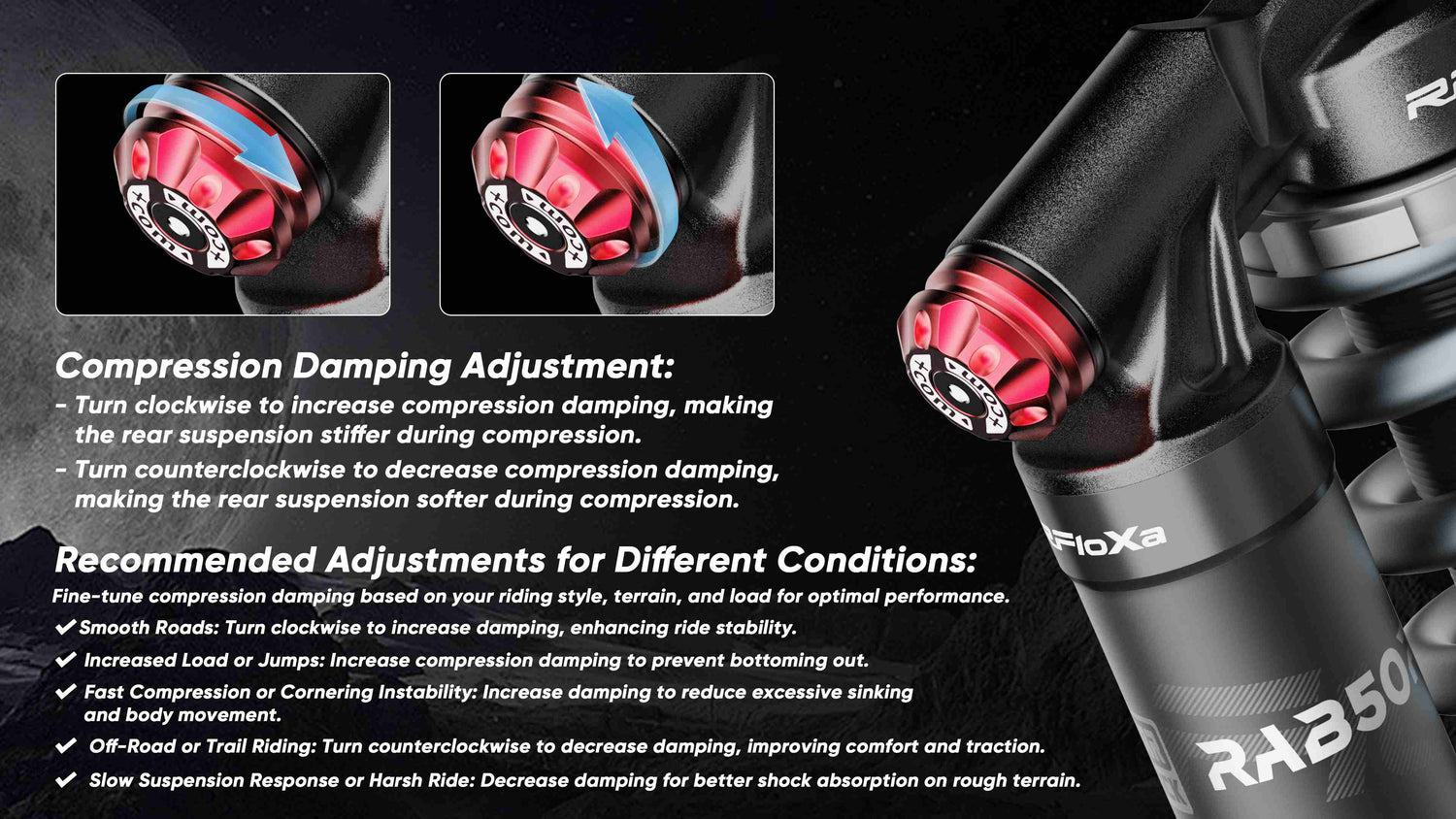

Low-Speed Compression Damping (LSC)
Controls the shock absorber's response to gradual impacts and low-speed
movements. It’s essential for reducing bounce and instability during
everyday riding activities such as pedaling, climbing stairs, or
traversing uneven surfaces. Proper adjustment of LSC enhances ride
stability and comfort. -
High-Speed Compression Damping (HSC)
Manages the shock absorber's response to rapid impacts and high-speed
situations, such as drops or sudden bumps. It prevents the shock
absorber from becoming too soft during intense impacts, maintaining
control and stability to prevent loss of balance and potential
accidents. -
Rebound Adjustment Knob
The rebound adjustment range is 10 segments. When adjusting, it is usually adjusted to the maximum in clockwise direction first, and then adjusted back to the required level in counterclockwise direction. Adjustment force should be moderate, a little resistance to stop, not too much force and exceed the limit of the internal adjusting screws, so as not to cause internal damage to affect your normal use!
